Consumer Unit Upgrade or Full Rewire: Which Does Your Home Need?
Two very different solutions that should not be confused
A consumer-unit upgrade replaces the equipment that distributes and protects the circuits. A rewire replaces some or all of the cables, accessories and circuit layout. A new consumer unit cannot repair deteriorated wiring, while an older consumer unit does not automatically mean every circuit needs rewiring.
What a consumer-unit upgrade changes

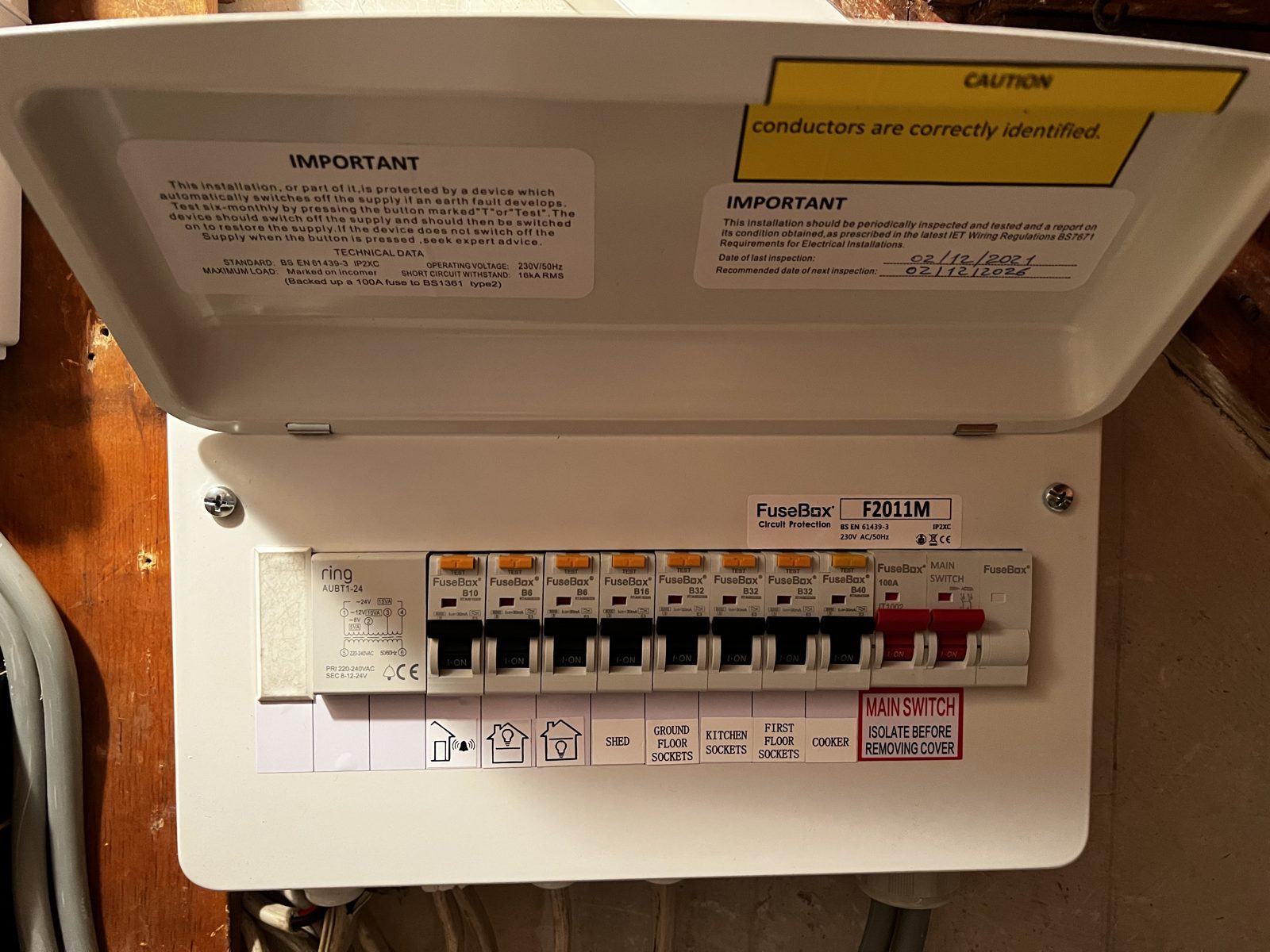

The consumer unit contains the main switch and protective devices for the final circuits. Replacing it may improve circuit separation, provide modern residual-current protection, add surge protection where appropriate, improve labelling and replace damaged or obsolete equipment.
The work requires assessment and testing of the existing circuits. Installing more sensitive protection can expose existing leakage or defects that did not previously cause tripping, so pre-work inspection is important.
What a rewire changes
Rewiring addresses the cables and circuit design throughout all or part of the property. It may involve new socket and lighting circuits, new routes, replacement accessories, upgraded earthing arrangements and a new consumer unit as part of the overall work.
Because cables are concealed, rewiring can require floor access, chasing and coordination with building finishes. It is a larger project than replacing the distribution equipment.
When a consumer-unit upgrade may be sufficient
An upgrade may be appropriate when the existing circuits test satisfactorily, the wiring is serviceable, and the main need is improved protection, capacity or organisation. It can also form part of another project that requires new circuits.
The electrician should explain any limitations. Retained circuits remain retained circuits; a new enclosure does not make old cable new or remove every non-compliance elsewhere in the property.
When rewiring may be justified
Rewiring may be justified when testing identifies widespread deterioration, unsafe alterations, inadequate conductors, damaged insulation or a layout that cannot support the intended use. A major refurbishment can also be the practical time to redesign circuits because walls and floors are already open.
Some homes need a partial rather than full rewire. For example, a heavily altered kitchen circuit may need replacement while other circuits remain suitable for continued service.
Do not choose from photographs alone
Photographs of a consumer unit can identify its general type and visible condition, but they cannot establish insulation resistance, continuity, polarity, earthing adequacy or concealed defects. A recommendation should follow inspection and relevant testing.
Ask for a written scope that clearly separates essential safety work, work needed for the planned installation and optional improvements. This makes the decision easier to understand and budget.
Frequently asked questions
Can a consumer unit be replaced without testing the circuits?
No responsible replacement should proceed without appropriate inspection and testing of the existing installation.
Will a new consumer unit stop all tripping?
Not necessarily. Tripping may be caused by a circuit or appliance fault. Modern protection may reveal issues that need separate diagnosis.
Can rewiring be completed in stages?
Often, yes, but phasing must be designed carefully so new and retained sections remain safe, clearly identified and properly certified.
